Product Details

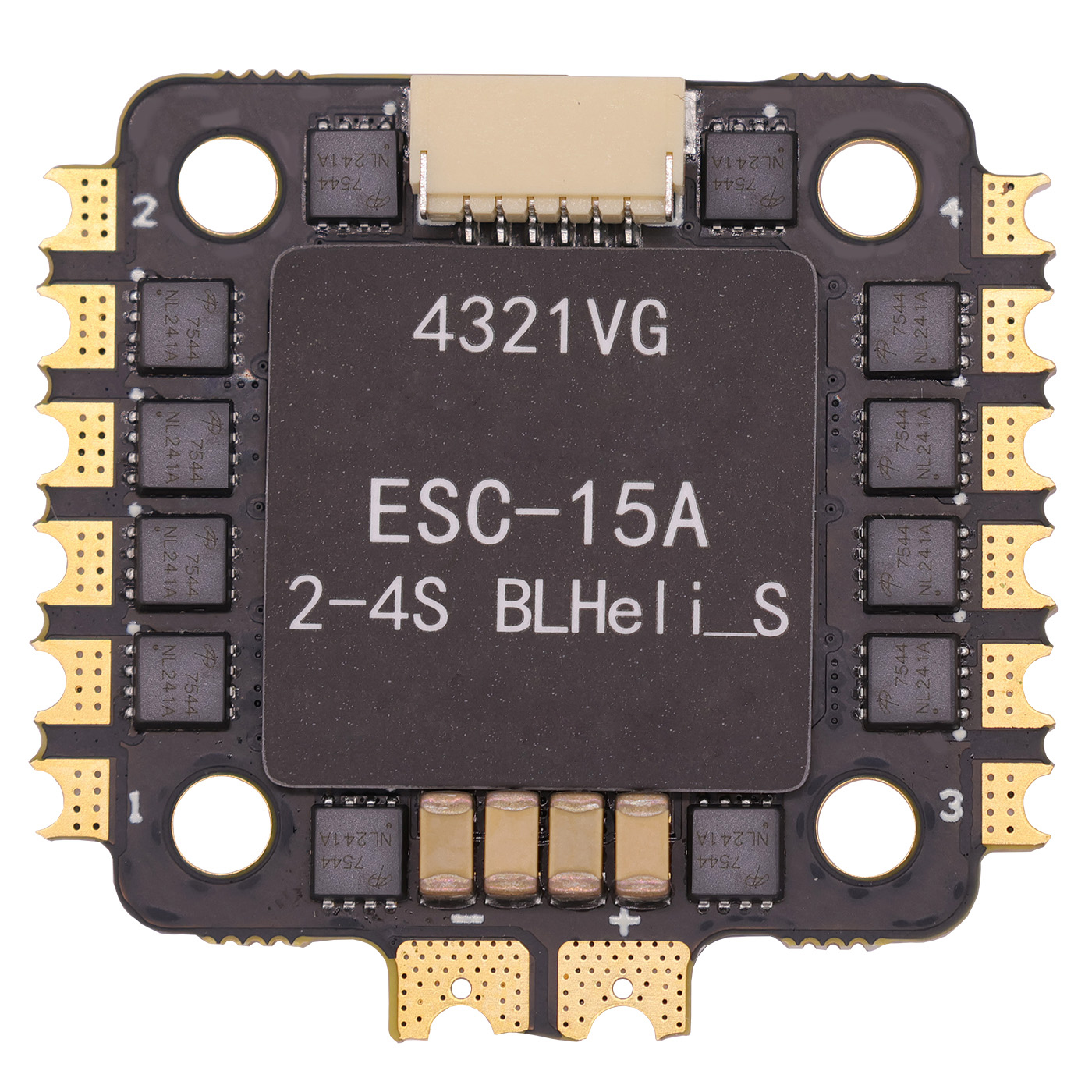

  BLS 15A 4IN1 ESC

EMF8BB21F16G main control chip, dual pad design, operating frequency up to 48MHz. Imported mosfet, three in one IC drive, imported high-quality high-frequency Ceramic capacitor. The high-end PCB production process uses metallized edge wrapping on the solder pads to prevent them from falling off during use; 2-ounce copper thickness, 4-layer plate, greatly reducing heat generation improving efficiency.

  ESC Specifications：

Size: 32  30mm (20mm-20mm mounting hole)

Packaging size: 64  64  35mm

Net weight of product: 5.3g

Packaging weight: 18g

Electric adjustment firmware: G_ H_ 20- Rev. 16.7- Multi

Protocol support: PWM, Oneshot125, Oneshot42, Multispot, Dshot150, Dshot300, Dshot600

Input voltage: 2S-4S Lipo

Continuous current: 15A

Peak current: 25A
