Product Details

  Featuer：

1. The PCB adopts high-end 8-layer 2oZ thickened copper sheet, high-end resin plug hole PCB production process, dual pad design, stronger overcurrent capacity, good heat dissipation.

2. MOS adopts imported 40V high current withstMOS, with long service life strong load capacity.

3. Adopting industrial grade LDO, resistant to high temperature.

4. Adopting high-quality Japanese Murata capacitors with strong filtering performance

   Specifications：

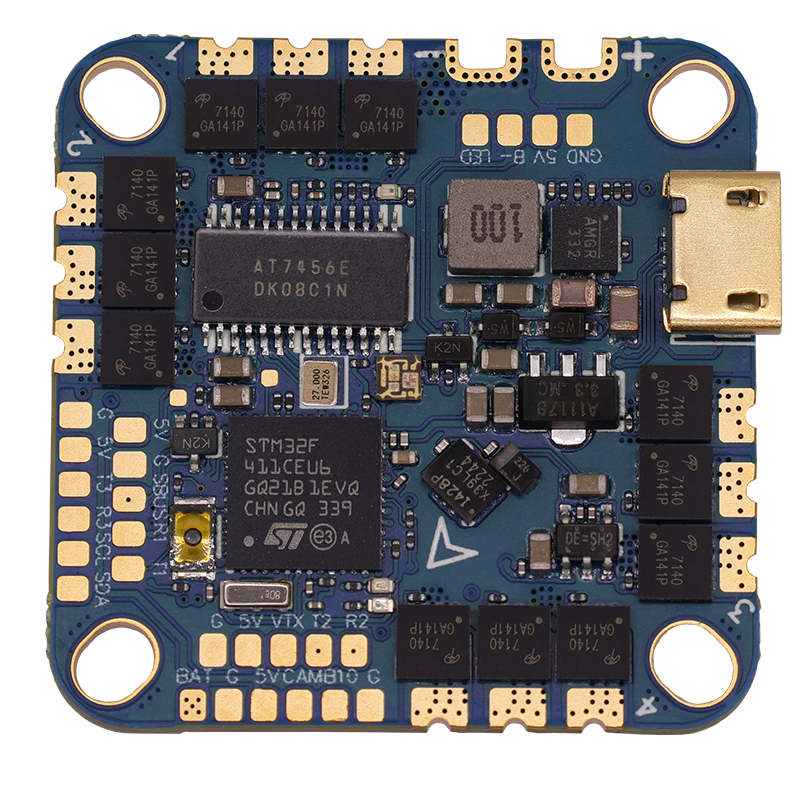

Item Name: HAKRC F4126 40A AIO


Mounting Hole: 25.525.5mm/26.526.5mm

Weight: 8.5g

Package weight: 50g

Size: 3131mm



Flight Controller:

CPU: STM32F411CEU6

IMU: ICM42688

OSD: AT7456E

Barometer: SPL06

LED: Suppotr programmabled such as WS2812

Current meter: Yes

Firmware:  F411D

Support receiver: Frsky/ Futabas/ Flysky/ TBS Crossfire/ DSMX:DSM2



ESC:

Firmware: BLHELI_ S (G- H-30)

Support PWM, Oneshot125, Oneshot42, Multishot, Dshot150，Dshot300，Dshot600

Input: 2S-6S Lipo

Con. Current: 40A

Peak Current: 45A




Package Included:

1x F411 40A AIO

4x M2 Shock absorber

1x XT30 power cord

1x Small bandage

1x Type-C USB

1x USB cable

1x 270uf/35V capacitor

1x DJI FPV Cable

1x DJI O3 Air Unit 3-in-1 Cable

1x Instructions
