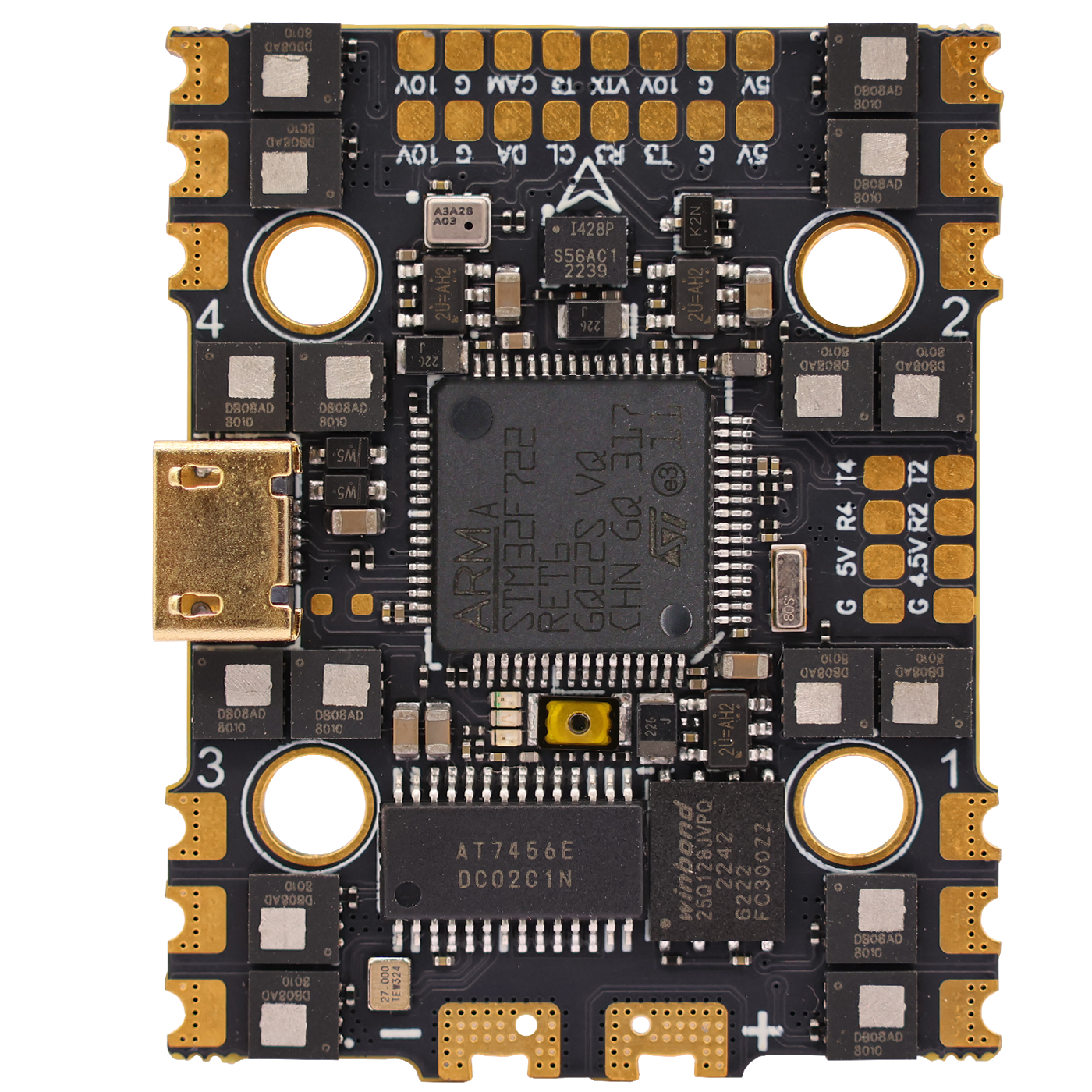

Product Details

1. MOS adopts imported 40V high current withstMOS, with long service life strong load capacity.

2. Adopting industrial grade LDO, resistant to high temperatures.

3. Adopting high-quality Japanese Murata capacitors with strong filtering performance

Size: 40  30mm (20mm-20mm mounting hole)

Packaging size: ø 64  64  35mm

Net weight of product: 10g

Packaging weight: 44g

Sensor: built-in current sensor

FC firmware version:  CF7220D

Receiver: ELRS/TBS Crossfire/Frsky/Futaba/Flysky/DSMX: DSM2 receiver

ESC firmware version: HAKRC_ AT4G_ Multi_ 32_ 9. Hex

Protocol support: PWM, Oneshot125, Oneshot42, Multispot, Dshot150, Dshot300, Dshot600

CPU: STM32F722RET6

IMU: ICM42688

OSD: AT7456E

Barometer: integrated

Black box: 16M

BEC: 5V/2.5A

BEC: 10V/2A

LED: Adjustable LED light
