Product Details

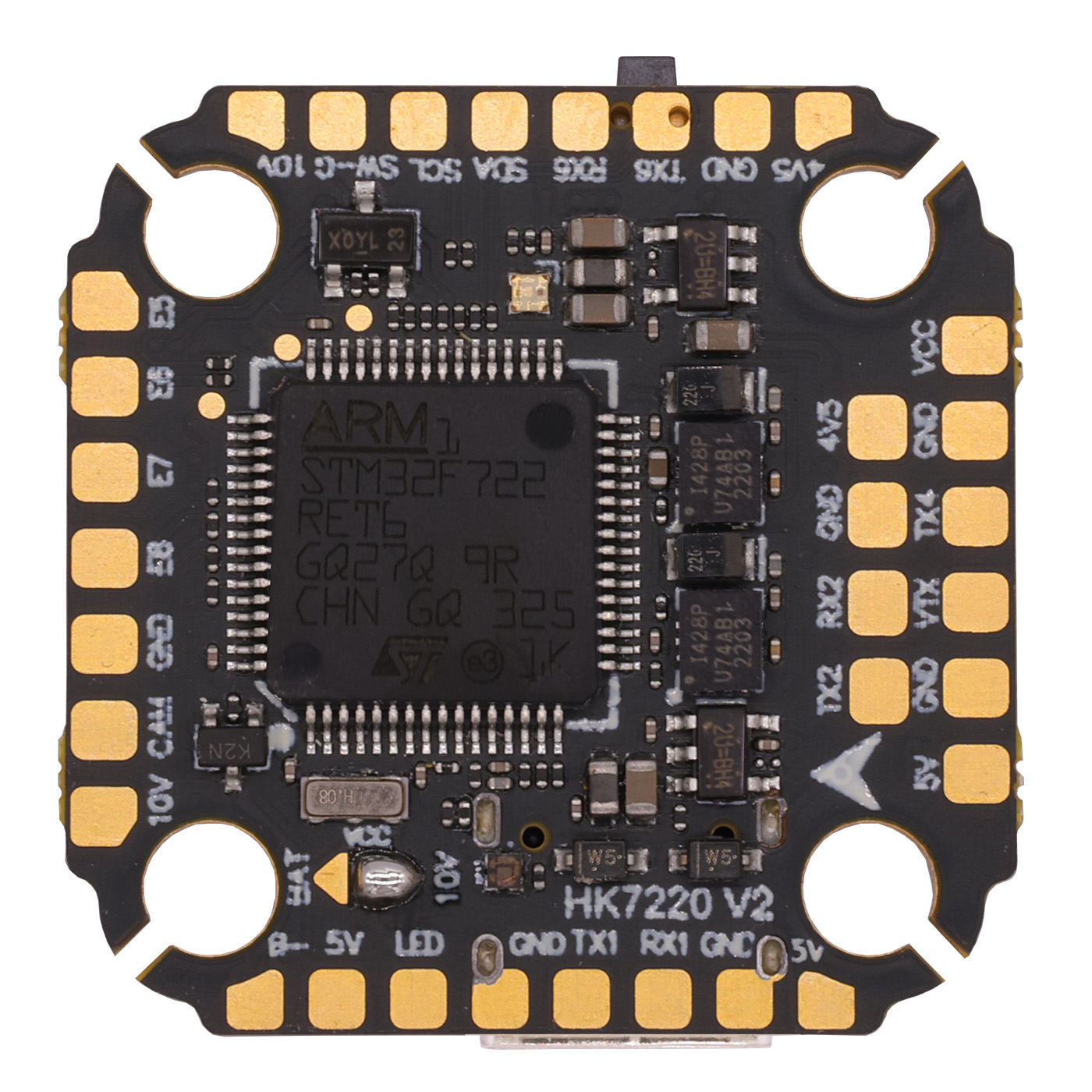

   7220V2 FC

1. The PCB adopts high-end 6-layer 1oZ thick copper sheet, with strong anti-interference ability。

2. Adopting a dual gyroscope design to reduce the error of one gyroscope。

3. Adopting industrial grade LDO, resistant to high temperature。

4. Equipped with DJI sky end straight socket, easy to install solder free。

5. Reserve an external LED light strip with a 10V power supply, customize the remote control channel for light strip switch control。

6. The image transmission power supply can be freely turned on or off by setting a switch channel at the ground station, facilitating ground reference adjustment。

7. Adopting high-quality Murata capacitors from Japan, with strong filtering performance。

8. Eight motor control signal outputs。

  FC Specifications：

Size: 29  29mm (20mm-20mm mounting hole)

Packaging size: 64  64  35mm

Input voltage: 2S-6S Lipo

Net weight of product: 6g

Packaging weight: 37g

Flight control parameters:

CPU: STM32F722RET6

IMU: ICM42688 dual gyroscope


OSD: AT7456E


Barometer: integrated


Black box: 16M


BEC: 5V/2A


BEC: 10V/2A


LED: Supports external adjustable LED


Sensor: built-in current sensor


Firmware version: HAKRCF722V2


Receiver: Frsky/Futaba/Flysky/TBS Crossfire/DSMX: DSM2 receiver


Packing list:

1x F7220V2 flight controller

4x M2 shock absorber

1x 8 cables

1x DJI FPV cable

1x Dajiang O3 aviation crew three in one cable

1x instruction manual
