Product Details

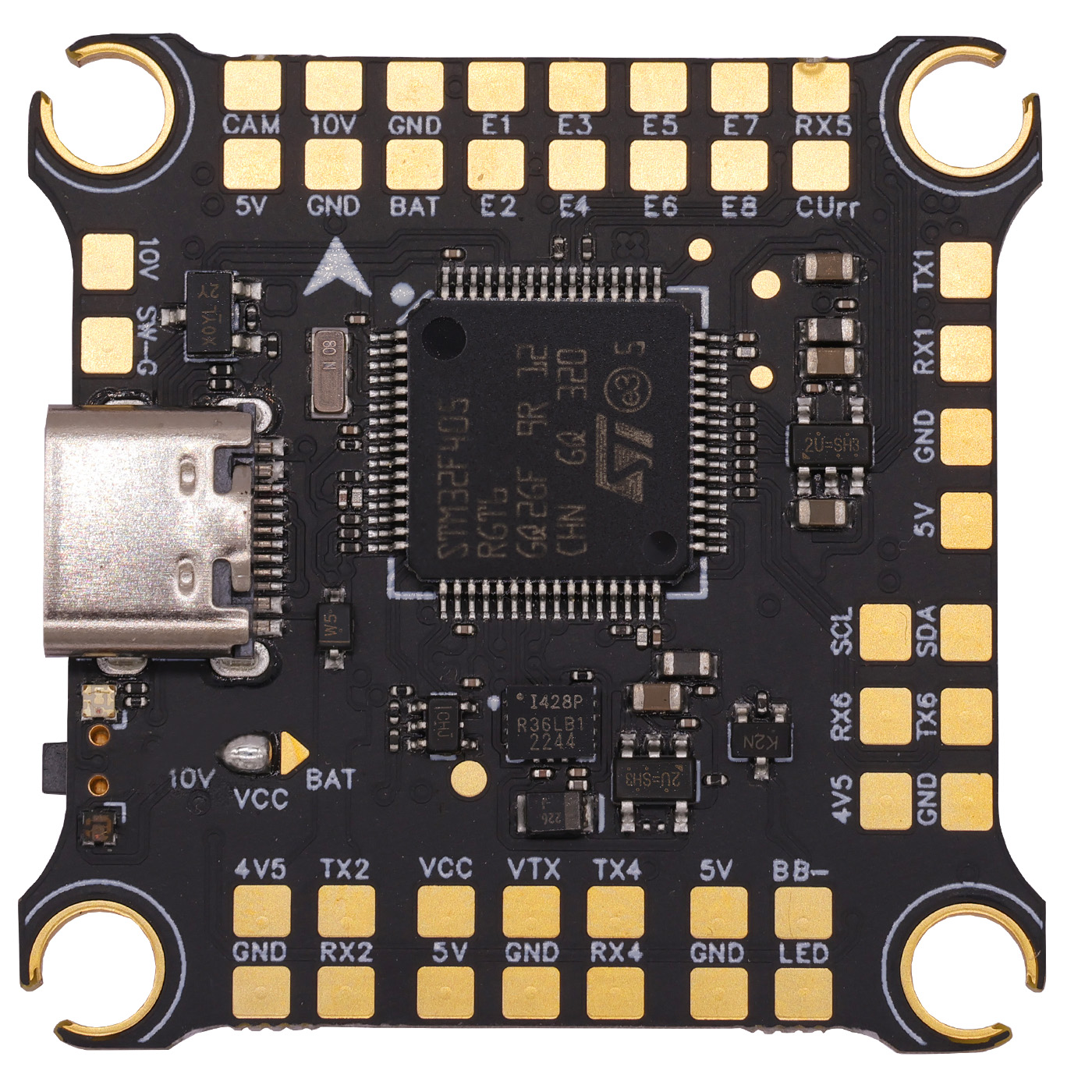

   7230V2 FC

1. The PCB adopts high-end 6-layer 1oZ thickened copper sheet adopts high-end resin plug hole PCB production process, with strong anti-interference ability。

2. Adopting a dual gyroscope design to reduce the error of one gyroscope。

3. Adopting industrial grade LDO, resistant to high temperature。

4. Use inline connectors for easy installation soldering free。

5. The board comes with 4 programmable illusion LED lights, which can freely switch LED lighting effects。

6. Reserve an external LED light strip with a 10V power supply, customize the remote control channel for light strip switch control。

7. The image transmission power supply can be freely turned on or off by setting a switch channel at the ground station, facilitating ground parameter adjustment。

8. Adopting high-quality Japanese Murata capacitors, with strong filtering performance。

9. Eight motor control signal outputs。

10. Comes with a 6P sky mount。

  FC Specifications：

Size: 36 36mm (30.5mm-30.5mm mounting hole)

Packaging size: 64 64 35mm

Input voltage: 2S-6S Lipo

Net weight of product: 8.5g

Packaging weight: 40g

Flight control parameters:

CPU: STM32F722RET6

IMU: ICM42688 dual gyroscope

OSD: AT7456E

Barometer: integrated

Black box: 16M

BEC: 5V/3A

BEC: 10V/2.5A

LED: Comes with four programmable LED illusion lights

Sensor: built-in current sensor

Firmware version: HAKRCF722V2

Receiver: Frsky/Futaba/Flysky/TBS Crossfire/DSMX: DSM2 receiver

Packing list:

1x F7230V2 Flight controler

4x M3Shock absorber

1x 8Pcabled

1x DJI FPV cabled

1x LED4Pcabled

1x receiver 4Pcabled

1x DJI O3 Air Unit 3-in-1 Cable

1x Instructions
