Product Details

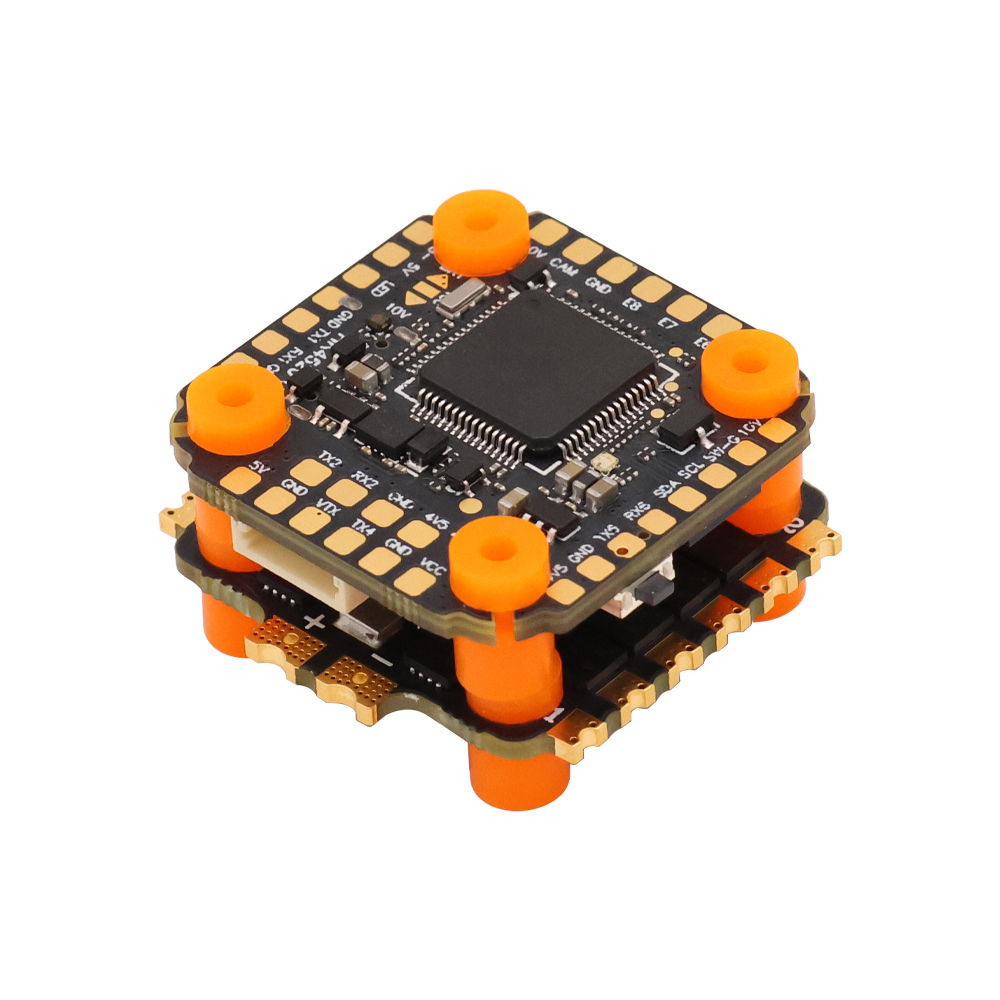

40A MiniF4  flying tower is equipped with BLHeli-32 40A four-in-one ESC F405 flight control, Installation hole spacing of 20 20mm.F405 flight controller is equipped with 5 serial ports,ICM-42688 IMU,OSD,F.Port many other functions!Built-in plug-in allows you to easily connect to the DJI O3 Air Unit.Integrated 16Mb black box, barometer, upgraded Type-C USB interface, greatly improve socket life reduce the risk of poor contact. Supports various receivers including SBUS,ELRS, PPM, CRSF, DSMX, iBus, DSM2, etc.

  F405 FC Specifications：

Size: 29 39mm (20mm-20mm mounting hole)

package size: 64 64 35mm

input voltage: 2S-6S LIPO

product net weight: 6g

package weight: 37g

CPU: STM32F405RET6

IMU: ICM42688

OSD: AT7456E

barometer: Integrated

Black Box: 16MB

EC: 5V/2A

BEC: 10V/2A

LED: support external adjustable LED

sensor: built-in current sensor

firmware version: HAKRCF405V2

receiver: Frsky/Futaba/Flysky/TBS Crossfire/DSMX: DSM2 receiver

  BLHeli_32 40A ESC Specifications：

Size: 44 44mm (20mm-20mm mounting hole)

Packaging size: 64 64 35mm

Net weight of product: 6g

Packaging weight: 41g

Input voltage: 2S-6S Lipo

Galvanometer ratio: 300

Continuous current: 40A

Peak current: 45A

Supporting the transmission of electrical dispatch telemetry data maps

Electric adjustment firmware: HAKRC-40-K42_ Multi_ 32_ 8. Hex

Protocol support: PWM, Oneshot125, Oneshot42, Multispot, Dshot150, Dshot300, Dshot600
