Product Details

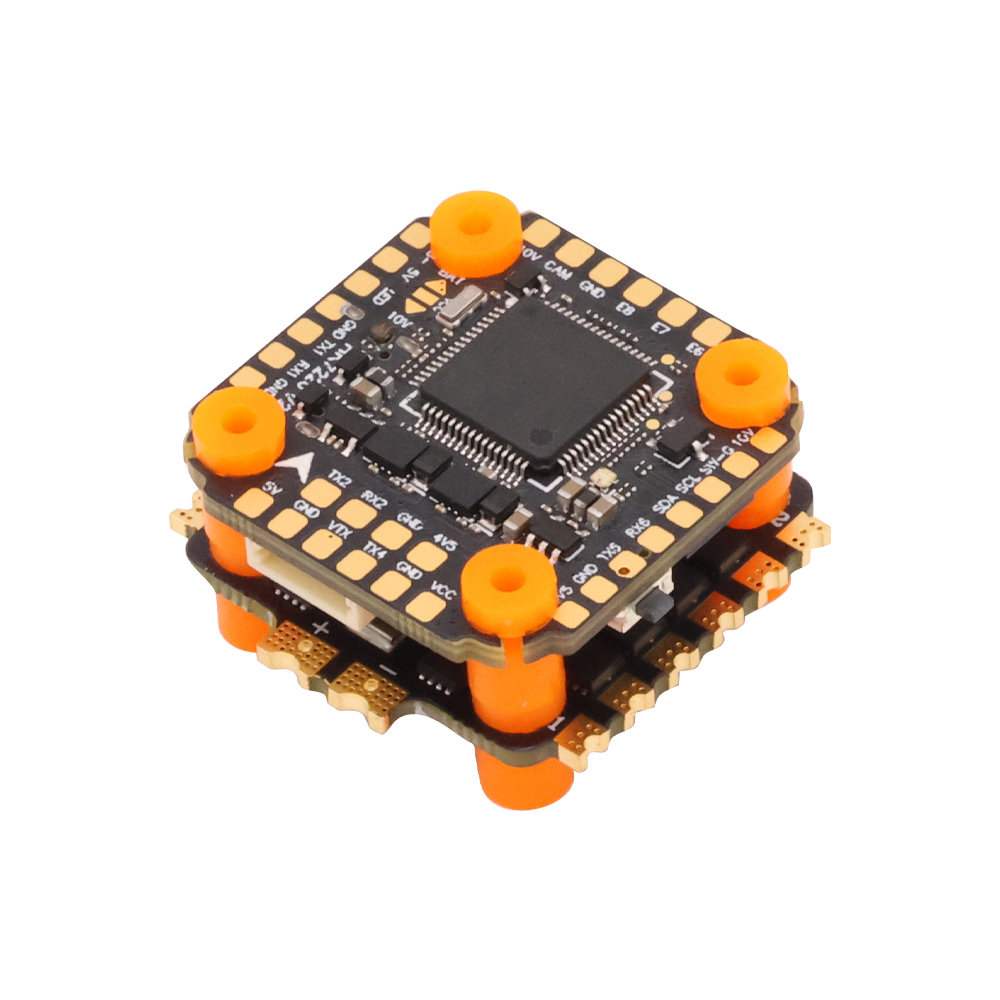

35A Mini F7V2 flying tower is equipped with BLS 35A four-in-one ESC F722 flight control,Installation hole spacing of 20 20mm.F722 flight controller is equipped with 6 UARTs, MPU6500 IMU, OSD, F.Port many other functions!Built-in plug-in allows you to easily connect to the DJI FPV Air System.Integrated 16Mb black box, barometer, upgraded Type-C USB interface, greatly improve socket life reduce the risk of poor contact. Supports various receivers including Sbus,ELRS， PPM, CRSF, DSMX, iBus, DUMD, etc.

  F722 FC Specifications：

Size: 29 39mm (20mm-20mm mounting hole)

package size: 64 64 35mm

input voltage: 2S-6S LIPO

product net weight: 6g

package weight: 37g

CPU: STM32F405RET6

IMU: ICM42688 dual gyroscope

OSD: AT7456E

barometer: Integrated

Black Box: 16MB

EC: 5V/2A

BEC: 10V/2A

LED: support external adjustable LED

sensor: built-in current sensor

firmware version: HAKRCF722V2

receiver: Frsky/Futaba/Flysky/TBS Crossfire/DSMX: DSM2 receiver

  BLS 35A ESC Specifications：

Size: 31 30mm (20mm 20mm mounting hole)

packing size: 64 64 35mm

product net weight: 6g

packing weight: 40g

input voltage: 2S-6S Lipo

galvanometer ratio: 300

continuous current: 35A

peak current: 40A

Electric Firmware: g-rev. 16.7-Multi

protocol support: PWM, Oneshot125, Oneshot42, Multishot,

DSHOT150, DSHOT300, DSHOT600
