Product Details

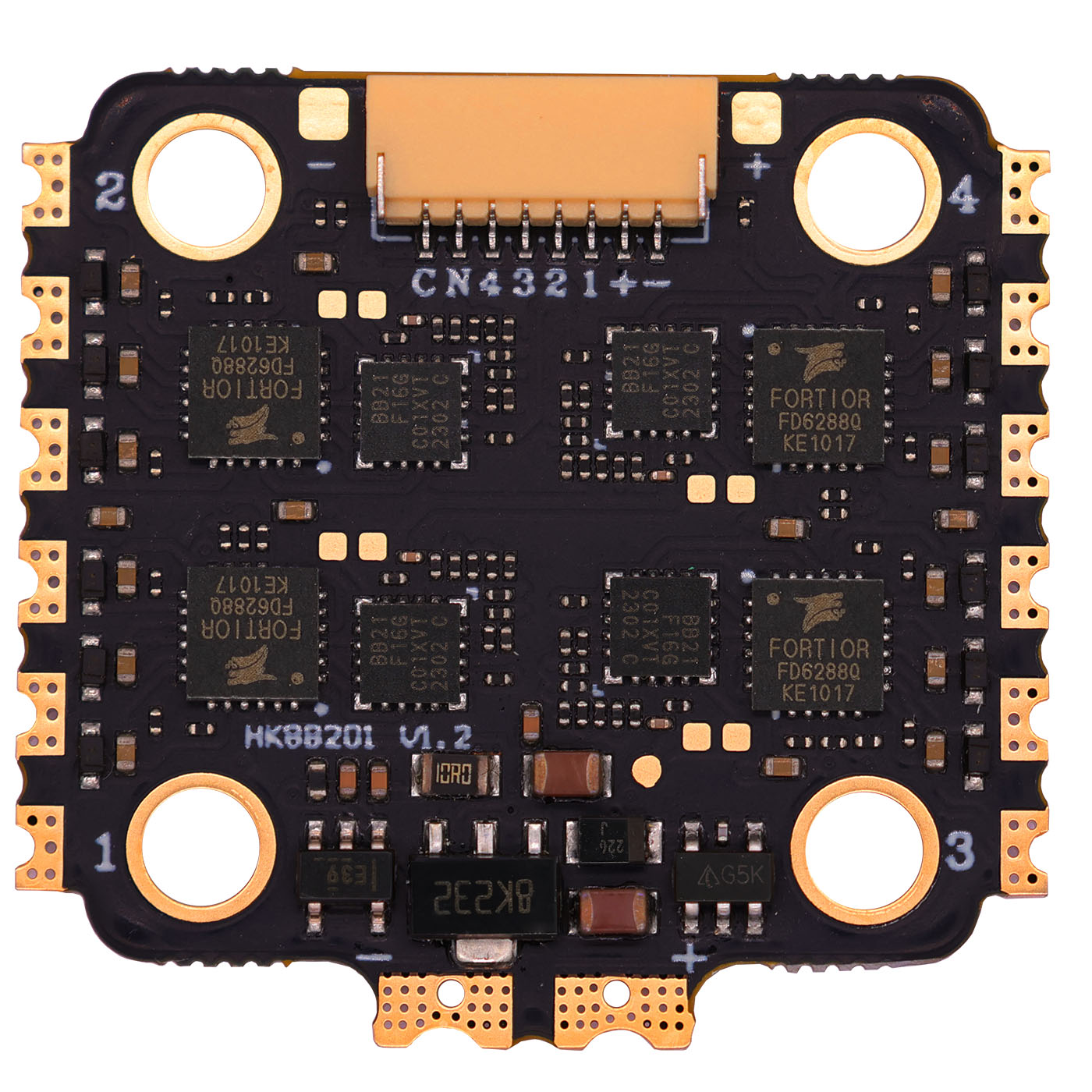

  BLS 8B 35A 4IN1 ESC

Imported MOS from Japan, three in one IC drive FD6288Q drive, imported high-quality Murata capacitor, using high-end resin plug hole PCB production process, dual pad design, all pads are metallized with edges, allowing you to avoid pad detachment during use; 2-ounce copper thickness, 6-layer plate, greatly reducing heat generation improving efficiency.

  ESC Specifications：

Size: 31 30mm (20mm 20mm mounting hole)

Packaging size: 64 64 35mm

Net weight of product: 6g

Packaging weight: 40g

Electric adjustment firmware: G_ H_ 20- Rev. 16.7- Multi

Protocol support: PWM, Oneshot125, Oneshot42, Multispot, Dshot150, Dshot300, Dshot600

Input voltage: 2S-6S Lipo

Galvanometer ratio: 300

Continuous current: 35A

Peak current: 40A
