Product Details

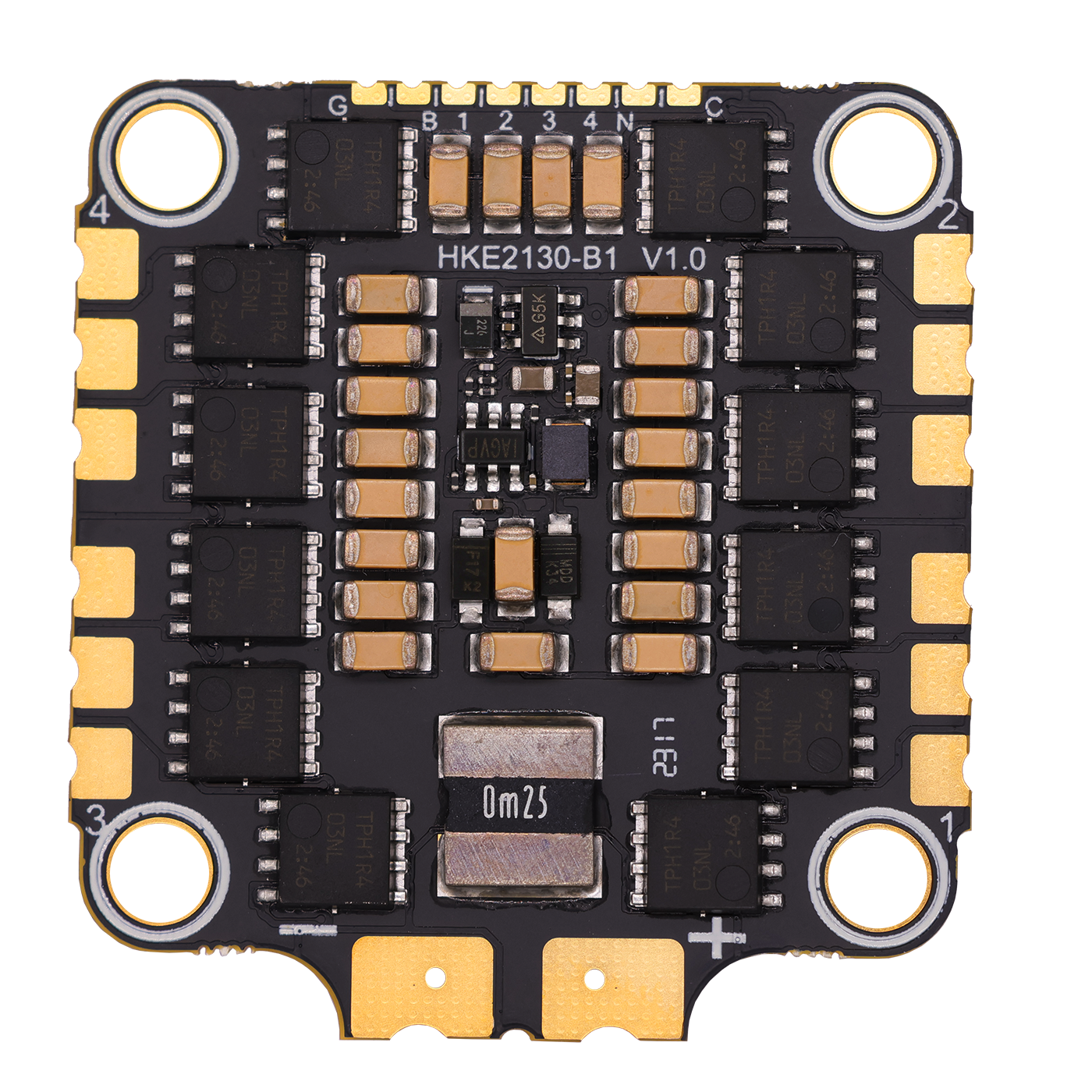

  BLS 2130 50A 4IN1 ESC

Imported MOS from Japan, three in one IC drive FD6288Q drive, imported high-quality Murata capacitor, using high-end resin plug hole PCB production process, all solder pads are metallized with edges to prevent solder pads from falling off during use; 3-ounce copper thickness, 6-layer plate, greatly reducing heat generation improving efficiency.

  ESC Specifications：

Size: 38.5 41mm (30.5mm-30.5mm mounting hole)

Packaging size: 64 64 35mm

Net weight of product: 12.5g

Packaging weight: 51.5g

Electric adjustment firmware: G_ H_ 30- Rev. 16.7- Multi

Protocol support: PWM, Oneshot125, Oneshot42, Multispot, Dshot150, Dshot300, Dshot600

Input voltage: 2S-6S Lipo

Galvanometer ratio: 160

Continuous current: 50A

Peak current: 60A
