Product Details

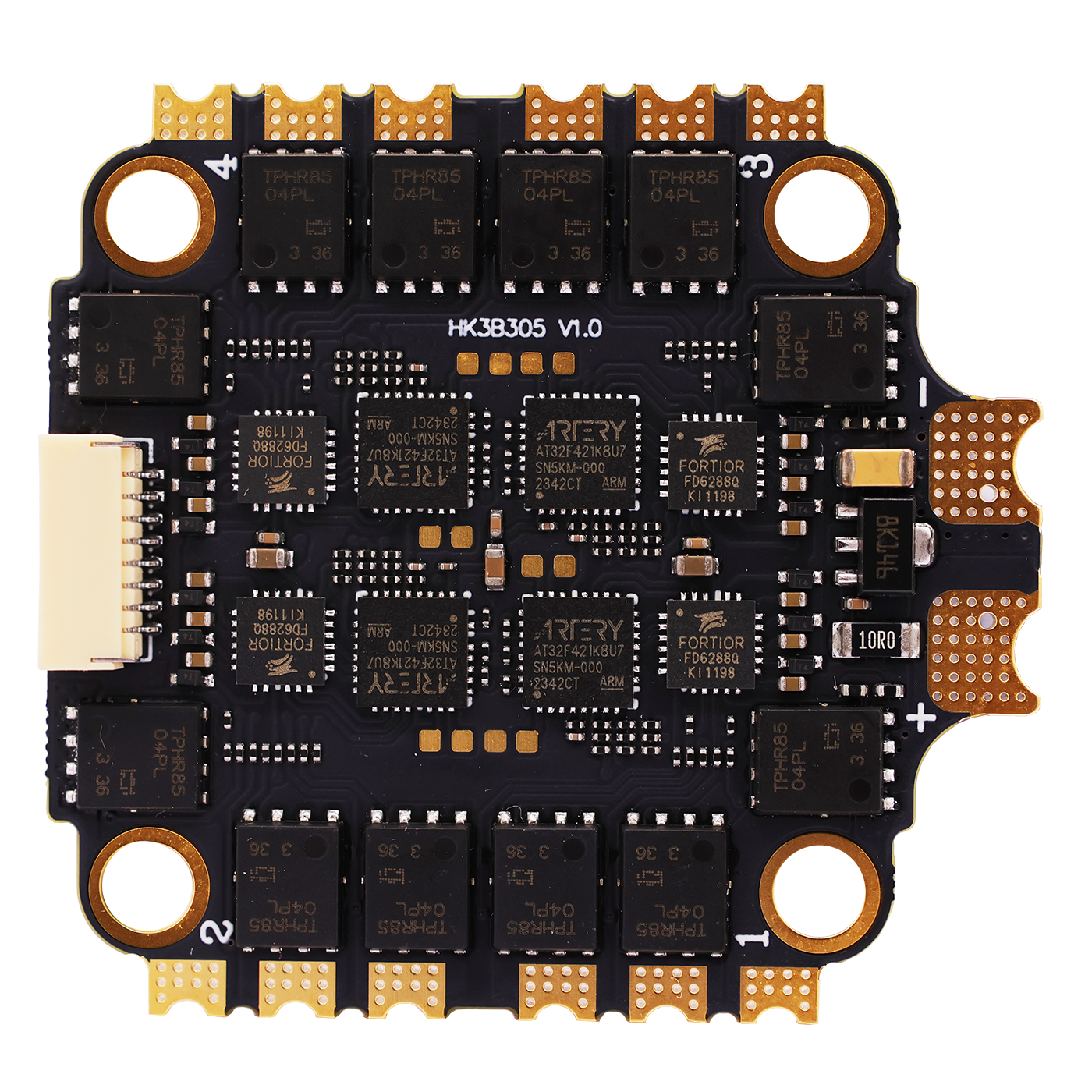

  BLHeli_323B 60A 4 IN 1 ESC

The AT32F421 main control chip operates at a frequency of up to 128MHz. Three in one IC drive FD6288Q drive, imported high-quality Murata capacitors, using high-end resin plug hole PCB production process, dual pad design adopts metallized edge wrapping, allowing you to avoid pad detachment during use; 2-ounce copper thickness, 6-layer plate, greatly reducing heat generation improving efficiency.

  ESC Specifications：

Size: 42.5 45mm (30.5mm-30.5mm mounting hole)

Packaging size: 64 64 35mm

Net weight of product: 15g

Packaging weight: 54g

Electric adjustment firmware: HAKRC-60-K42_ Multi_ 32_ 8. Hex

Protocol support: PWM, Oneshot125, Oneshot42, Multispot, Dshot150, Dshot300, Dshot600

Input voltage: 2S-6S Lipo

Galvanometer ratio: 160

Continuous current: 60A

Peak current: 70A
