Product Details

  Featuer

1. The PCB adopts high-end 8-layer 2oZ thickened copper sheet, adopts the production process of high-end resin plug hole PCB. The dual pad design has stronger overcurrent capacity good heat dissipation.

2. MOS adopts imported 40V high current withstMOS, with long service life strong load capacity.

3. Adopting industrial grade LDO, resistant to high temperature.

4. Adopting high-quality Japanese Murata capacitors with strong filtering performance

Supporting the transmission of electrical dispatch telemetry data maps

Size: 33 33mm (25.5mm-26.5mm mounting hole)

Packaging size: 64 64 35mm

Net weight of product: 8.5g

Packaging weight: 54g

  Description:

Brand: Hakrc

CPU: STM32F722RET6

IMU: Dual gyroscope (ICM-42688)

OSD: AT7456E

Barometer: integrated

BEC: 5V/2A

Proportional value of ammeter: 200

Black box: 16M black box

LED: Supports external programmable LED light strips

Sensor: built-in current sensor

Flight control firmware version: HAKRCF722D

Receiver: CRSF/Frsky/Futaba/Flysky/TBS Crossfire/DSMX: DSM2 receiver

Ø ESC parameters:

Firmware version: HAKRC_ AT4G_ Multi_ 32.9 Hex

Protocol support: PWM, Oneshot125, Oneshot42, Multispot, Dshot150, Dshot300, Dshot600

Input voltage: 2S-6S Lipo

Proportional value of ammeter: 200

Continuous current: 45A

Peak current: 55A

Package Included:

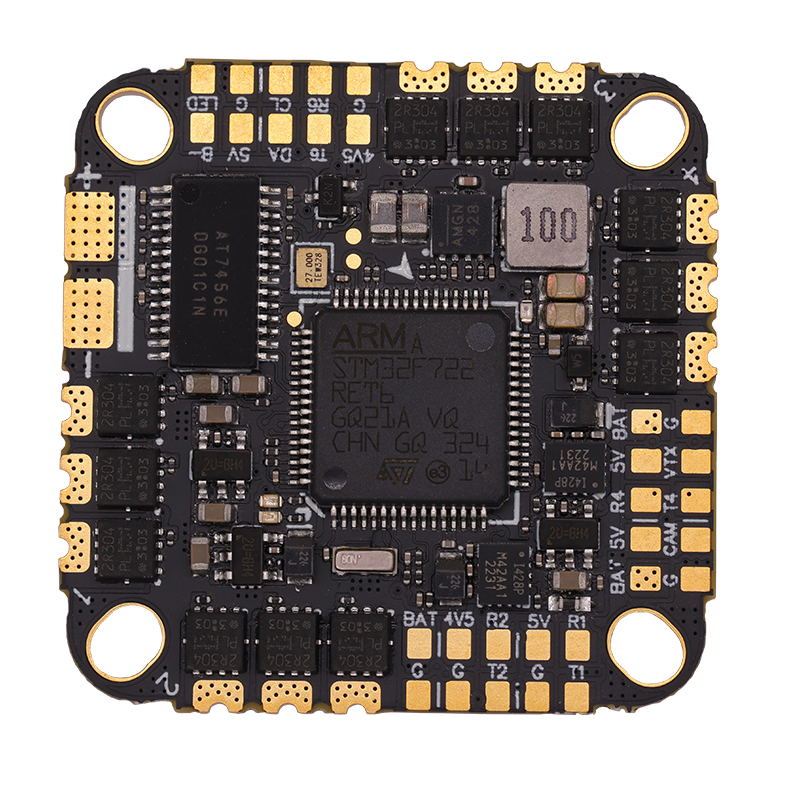

1x HAKRC F722 BLHeli_32 AIO

4x M2 orange shock absorber ball

1x USB panel1

1x 5Pin cable1

1x 35V470uf capacitor1

1x XT601,Small bandage 1

1x red blue cable1

1x DJI FPV Cable1

1x DJI O3 Air Unit 3-in-1 Cable 1

1x Instructions
