Product Details

  Featuer

1. The PCB adopts high-end 8-layer 2oZ thick copper skin, which has stronger over-current capability good heat dissipation.

2. MOS adopts imported 40V high current resistance MOS, long life strong load capacity.

3. Using industrial grade LDO, high temperature resistance.

4. Using high-quality Japanese Murata capacitors, strong filtering performance

  Description:

Brand: Hakrc

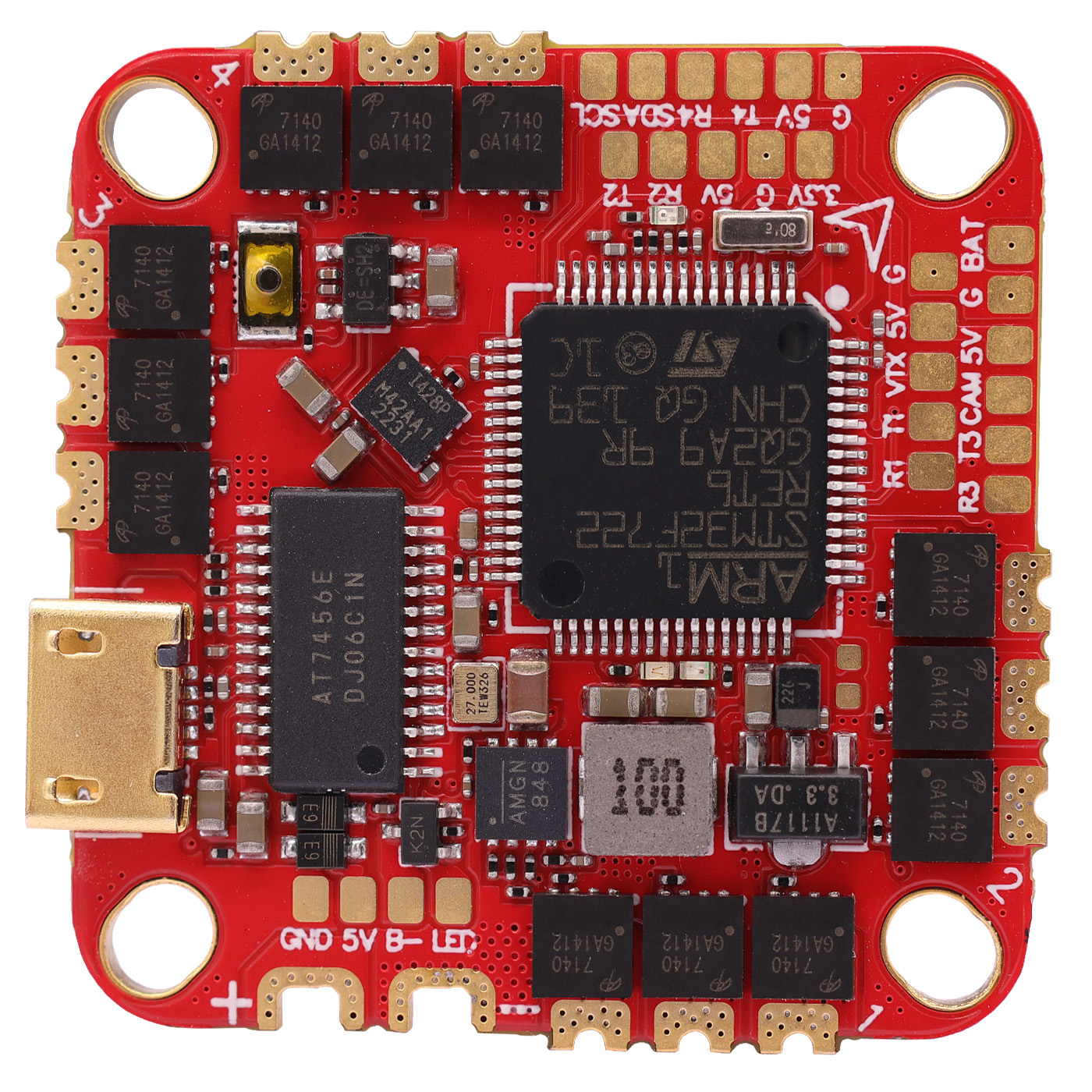

Item Name: F722 FC Built-in 40A BLHELI_ S 2-6S AIO ESC

Size: 32 32mm (25.5mm-26.5mm mounting hole)

Packing size: ø6332mm

Product net weight: 7g

Package weight: 25g

Ø Flight control parameters:

CPU: STM32F722RET6

IMU: ICM42688

OSD: AT7456E

Barometer: integrated

BEC: 5V/3A

Uart: 5

LED: Support WS2812 other programmable

Sensor: Built-in current sensor

Flight control firmware version: HAKRC F722D

Receiver: CRSF / Frsky/ Futaba/ Flysky/

TBS Crossfire/ DSMX: DSM2 receiver

Ø ESC parameters:

Firmware support: BLHELI_ S

Protocol support: PWM, Oneshot125, Oneshot42,

Multishot, Dshot150, Dshot300, Dshot600

Input voltage: 2S-6S Lipo

Continuous current: 40A

Peak current: 50A

Current meter proportional value: 450

Firmware version: BLHELI _S (G- H-30)

Package Included:

1x  F722 Flight Controller AIO

4x Yellow shock-absorbing ball

1x XT30 power cord

1x Type-C USB small board

1x 80mm long SH1.0/7P single-head cable

1x  270uf/35V capacitor
